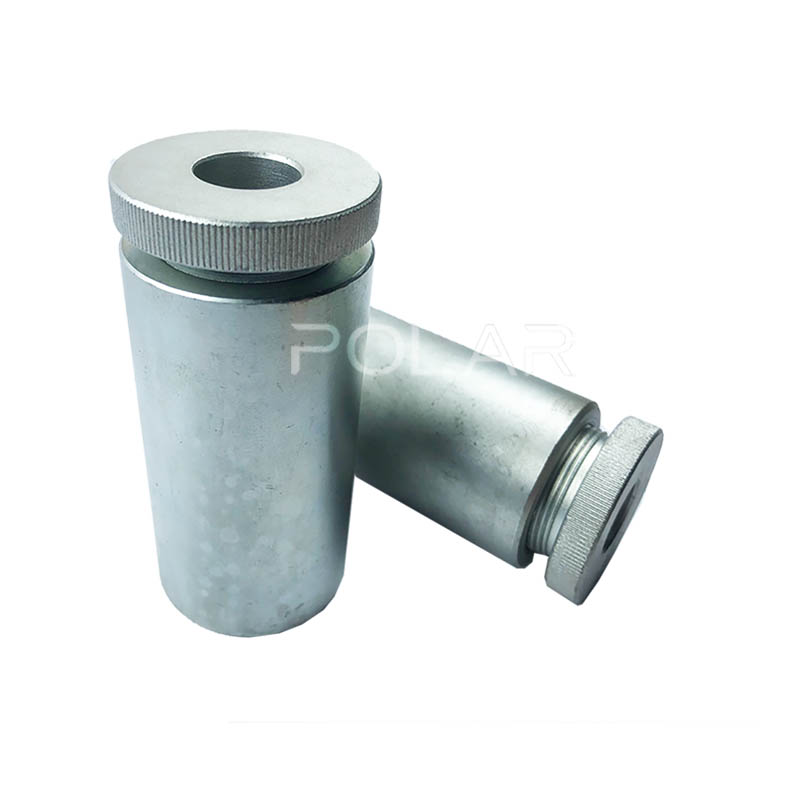

The Stressing fixed end Mono Anchors barrel and wedges is a high-performance post-tensioning anchor designed for concrete reinforcement in bridges, buildings, and heavy infrastructure. It can be used for 12.7mm. 15.2mm and 15.7mm pc strands.

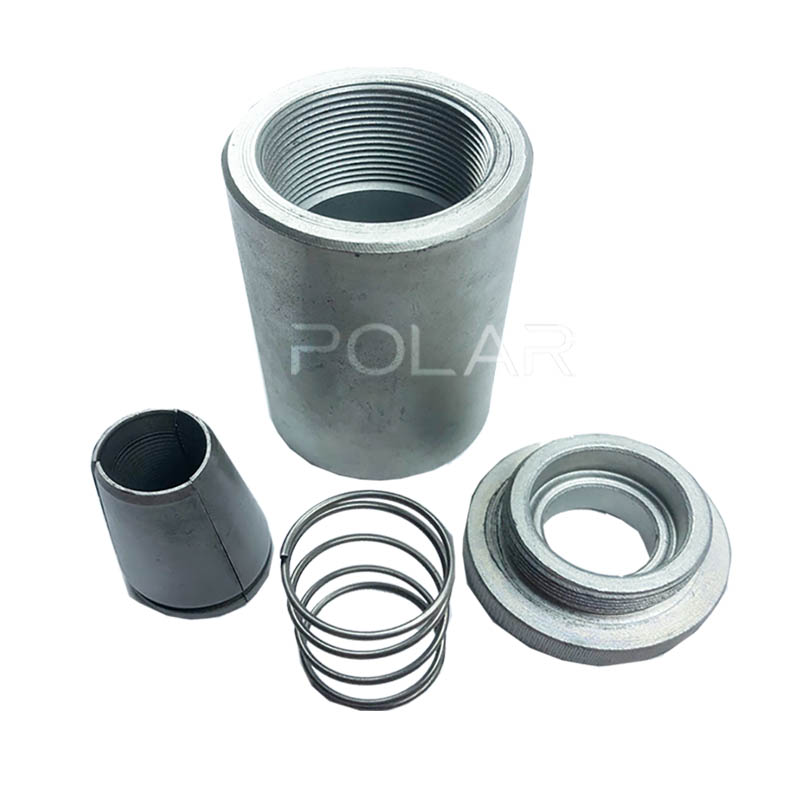

Stressing fixed end mono anchors are single-hole tool mono anchors . They each consist of an barrel, wedges, cap and spring.
Single-hole tool stressing mono anchors typically have three wedges and can be repeatedly tensioned at least 50 times, hence the name “tool mono anchor.”

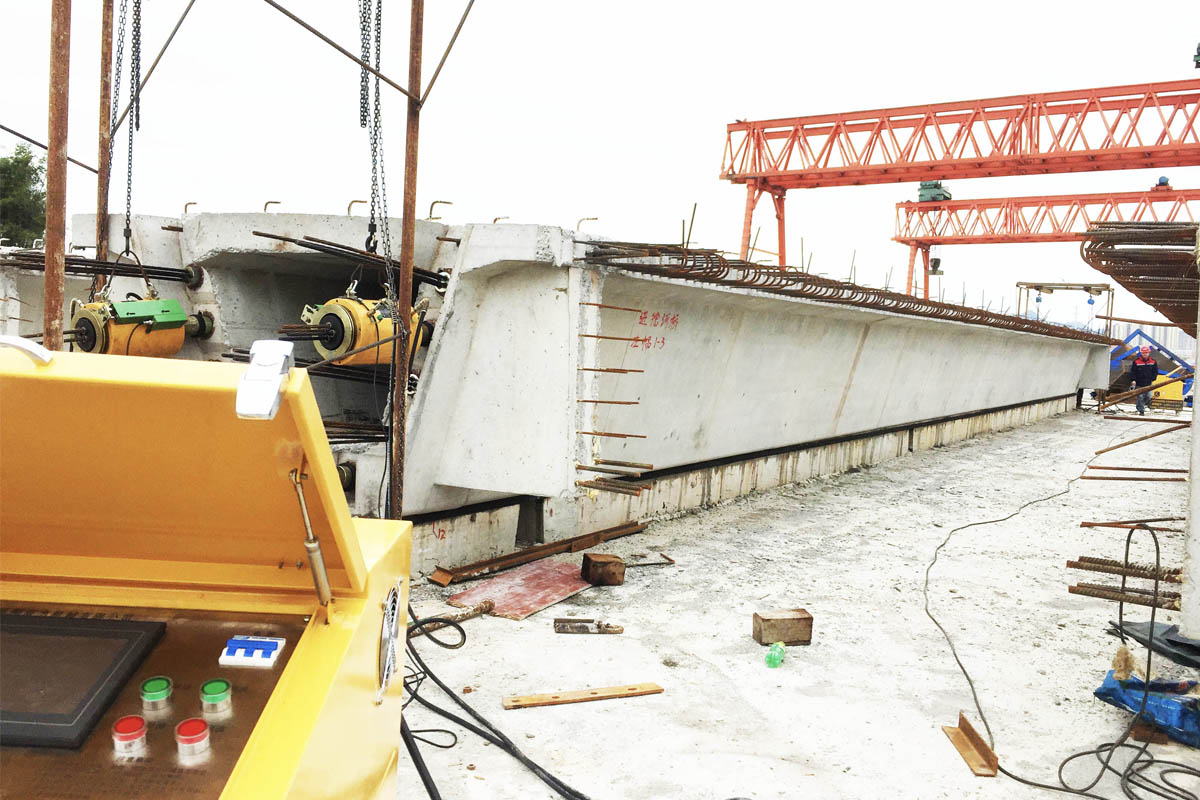

Post-tensioned prestressed structures: Used for components requiring individual strand tensioning, such as beams, slabs, and bridge decks.
Local reinforcement: Tensioning individual strands during concrete structure repairs or reinforcement.
Space-constrained areas: Due to its small size, it is suitable for narrow spaces or dispersed anchorage points.
Cable-stayed bridge cable anchorage: Anchoring individual strands of some cables (requires a corrosion protection system).
ACI 318-19 (Chapter 20) – American Concrete Institute’s prestressed concrete provisions
ASTM A416/A416M – Standard specification for prestressing steel strands
BS 5896:2012 – British standard for high-tensile steel wire & strand
GB/T 5224-2014 – Chinese standard for prestressed steel strands
Post-Tensioning Institute (PTI) – Provides design manuals & field guides for post-tensioning
PCI (Precast/Prestressed Concrete Institute) – Industry-leading technical resources & certifications
Yes, our round wedge anchorages integrate seamlessly with HDPE/PVC ducts & cement grout injection.
Absolutely! We provide stainless steel (SS304/SS316) and epoxy-coated anchorages for saltwater exposure.
Yes, we provide customized services for all multi strands anchorage and PT slab anchor system.
Yes, we provide OEM services for prestressed anchorage.
Our MOQ is 50sets.
Estrella Polar Technology Co., Limited is a leading manufacturer and supplier specializing in prestressed construction equipment, backed by over 20 years of expertise in product design and manufacturing.
we are also a professional trading company with over a decade of international trade experience.
