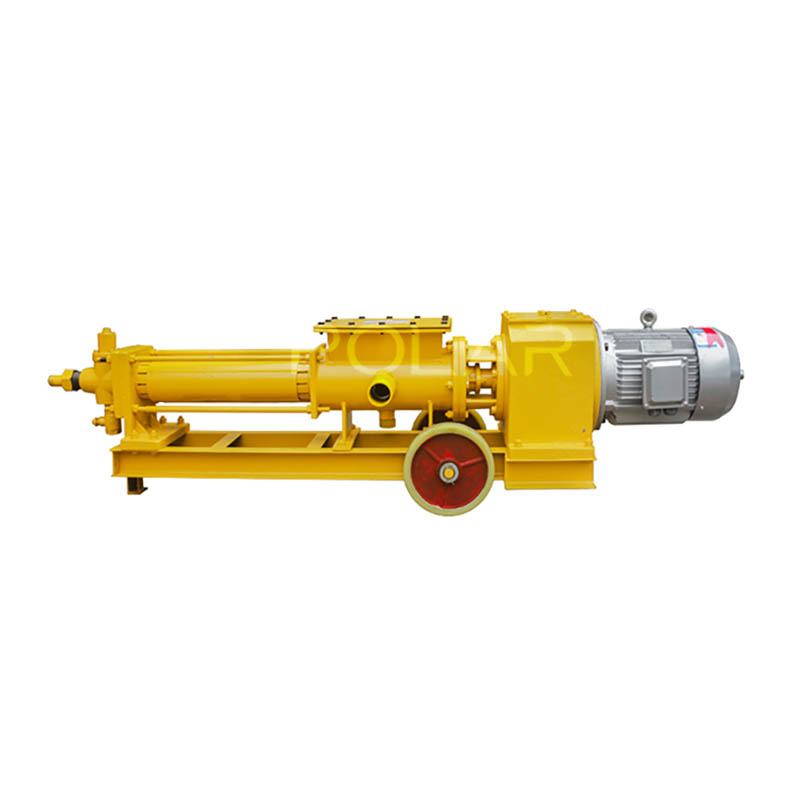

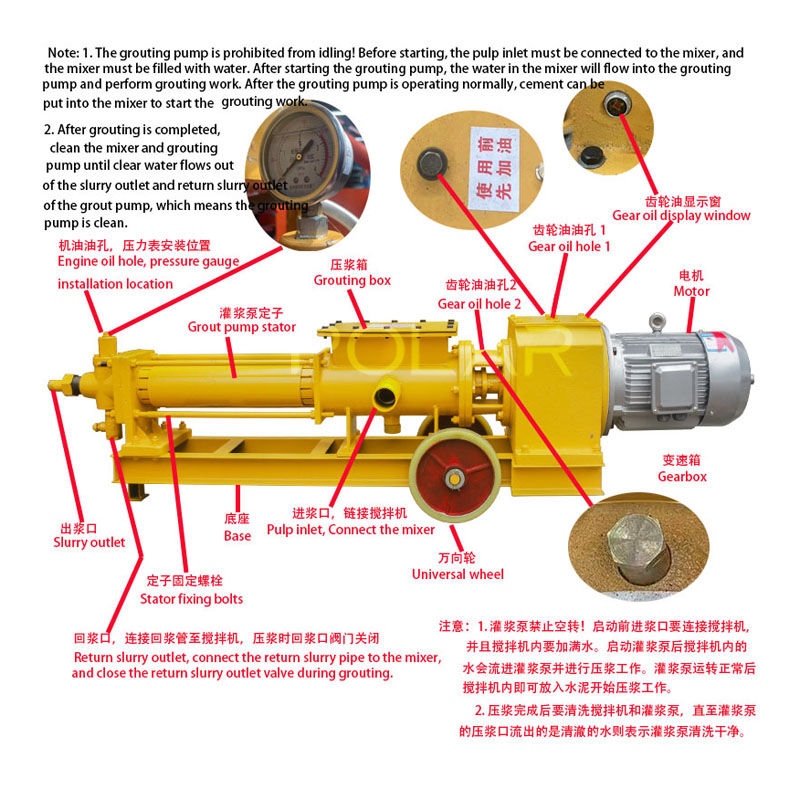

The single screw is a new type of grouting pump that works on the principle of a rotating meshing volumetric type. The main working parts are an eccentric screw (rotor) and a fixed bushing (stator).
Due to the special geometric shapes of the two parts, separate sealed chambers are formed respectively. The medium flows uniformly in the axial direction, the internal flow rate is low, the volume remains unchanged, and the pressure is stable, so turbulence and agitation are not generated. The output pressure of each stage pump is 0.6MPa, the head is 60m (clear water), and the self-priming height is generally 6m. It is suitable for conveying medium temperature below 80°C (up to 150°C for special requirements).
The single screw pump is a product with large grouting volume designed and produced by our factory according to market needs. It can transport a variety of media such as cement slurry, yellow mud, water glass, oil, and water. It has the advantages of compact structure, reliable work, low failure rate, convenient cleaning and maintenance, and high pumping pressure.
It can be widely used for grouting and blocking water in tunnels and mines, grouting for rock tunnels and concrete shaft walls, reinforcement and reinforcement of tunnel cracks, broken rock mass, and evacuated rocks, anchoring grouting, backfill grouting and prevention The ground sinks, prevents landslides, corrects the grouting of the building deflection, etc.
ACI 318-19 (Chapter 20) – American Concrete Institute’s prestressed concrete provisions
ASTM A416/A416M – Standard specification for prestressing steel strands
BS 5896:2012 – British standard for high-tensile steel wire & strand
GB/T 5224-2014 – Chinese standard for prestressed steel strands
Post-Tensioning Institute (PTI) – Provides design manuals & field guides for post-tensioning
PCI (Precast/Prestressed Concrete Institute) – Industry-leading technical resources & certifications
Yes, our round wedge anchorages integrate seamlessly with HDPE/PVC ducts & cement grout injection.
Absolutely! We provide stainless steel (SS304/SS316) and epoxy-coated anchorages for saltwater exposure.
Yes, we provide customized services for all multi strands anchorage and PT slab anchor system.
Yes, we provide OEM services for prestressed anchorage.
Our MOQ is 50sets.
Estrella Polar Technology Co., Limited is a leading manufacturer and supplier specializing in prestressed construction equipment, backed by over 20 years of expertise in product design and manufacturing.
we are also a professional trading company with over a decade of international trade experience.
